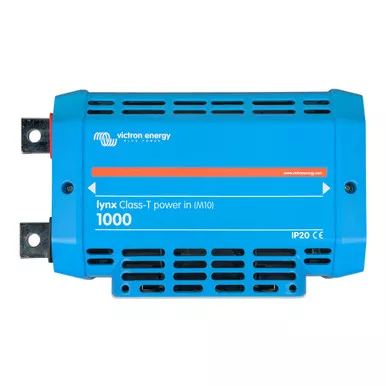

Victron Lynx Power-In Class-T M10 Terminals

Description

The Victron Lynx Power-In Class-T M10 is a high-current battery connection and fuse module designed to bring up to two lithium battery strings into a modular Lynx DC distribution system. It combines positive and negative busbars, two Class-T fuse positions, and a DC grounding connection in one enclosure, giving installers a clean way to fuse large battery-bank feeds close to the point where they enter the main distribution system.

Class-T fuses are especially well suited to large lithium banks because of their high interrupting capability. This module accepts 225A, 250A, 350A, and 400A Class-T fuses, which are purchased separately. Installations with three or more battery strings can use multiple Lynx Class-T modules to expand the number of fused battery inputs.

The module integrates with other M10 Lynx components including Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS units. Its tinned-copper busbars are rated for 1000A continuous current over a 9-60V DC range, while the IP20 ABS enclosure protects the assembly and keeps the high-current connections organized.

For large lithium battery systems that need two properly fused battery-string inputs and seamless integration with the Victron Lynx architecture, the Lynx Power-In Class-T provides a purpose-built entry point for high-current DC distribution. See what else we carry in power distribution & bus bars.
