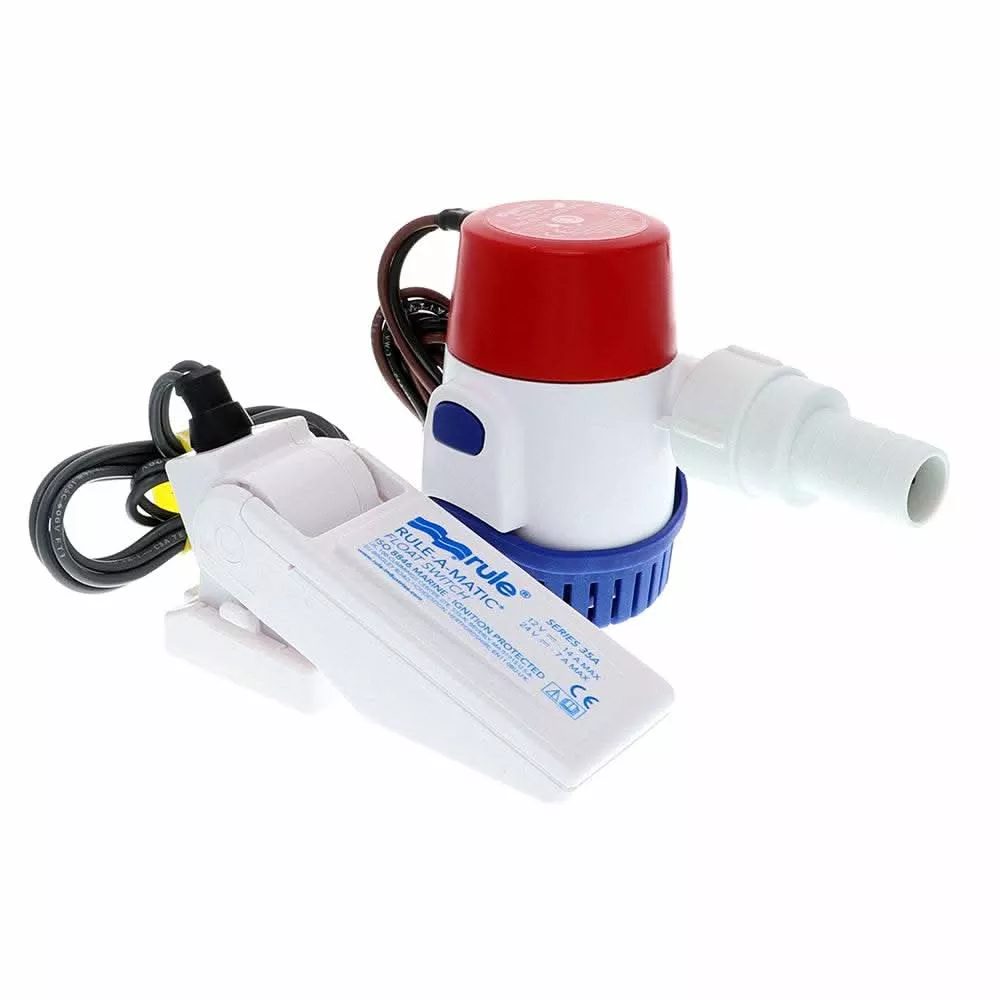

Rule 360 GPH Standard Bilge Pump Kit with Float Switch – 12V – 24DA-35A

Description

Rule 360 GPH Standard Bilge Pump Kit with Float Switch – 12V – 24DA-35A

The Rule 24DA-35A 360 GPH Standard Bilge Pump Kit is a comprehensive water removal solution designed for small vessels and ski-boats. This kit pairs a powerful 360 GPH submersible pump with a Rule-A-Matic mercury-free float switch, allowing for automatic operation when bilge water levels rise.

Key Performance & Design Features

• Optimized 12V Performance: Re-engineered to achieve its full 360 GPH flow rate at a true 12V DC supply, offering better efficiency than older models that required 13.6V.

• Anti-Airlock Protection: Features a hidden air vent in the pump body to prevent air-locking in challenging plumbing setups.

• Built-in Safety: Includes a Thermal Cut-Off (TCO) to protect the motor and vessel from overheating, along with ignition protection for use near fuel sources.

• Durable Construction: Built with a stainless steel shaft and high-abrasion, tin-coated silicone blocked wiring for maximum corrosion resistance.

• Backflow Prevention: Includes a check valve to prevent water in the discharge hose from running back into the bilge, keeping the area dryer.

Specifications

• Flow Rate: 360 GPH (1,362 LPH)

• Voltage: 12V DC (2.1 Amp draw)

• Fuse Size: 4 Amp (not included)

• Discharge Port: 3/4″ (19mm) threaded

• Automatic Switch: Rule-A-Matic Float Switch included

Comparison with Standalone Models

If you already have a float switch or manual panel installed, you might consider the standalone pump without the switch kit.
