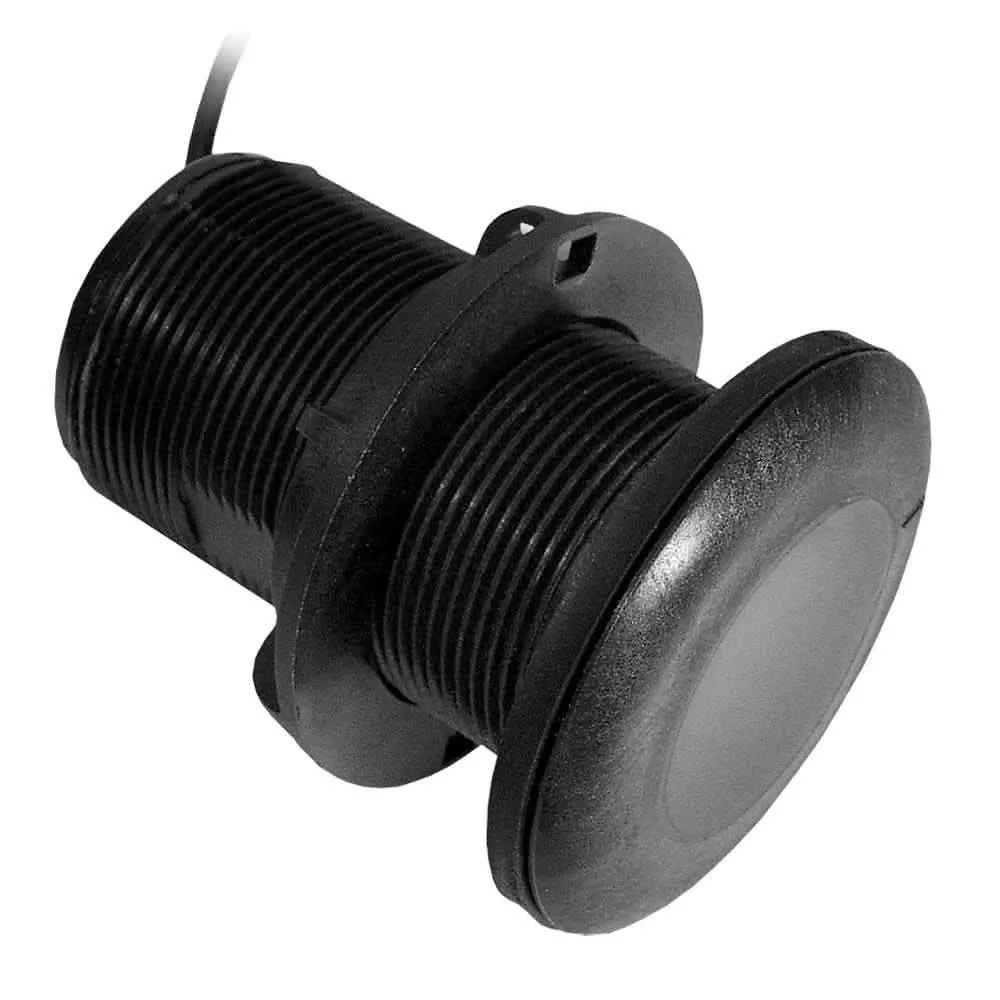

Raymarine Low Profile Plastic Depth Only – E66013

Description

Raymarine Low Profile Plastic Depth Only – E66013

The Raymarine E66013 Low Profile Plastic Depth Transducer is an essential thru-hull sensor designed for boaters who need accurate depth data with minimal drag. Its low-profile housing sits nearly flush against the hull, making it a perfect choice for trailerable boats or high-performance vessels where streamlining is key.

Precision and Durability

Constructed from high-strength plastic, this transducer is specifically designed for use in fiberglass or metal hulls. It operates on a 200 kHz frequency, providing the high resolution needed for precise shallow-water navigation and clear bottom tracking. Unlike bronze models, the plastic housing is immune to galvanic corrosion, making it a low-maintenance choice for many modern powerboats.

• Low-Drag Profile: Protrudes just 5mm (0.2 inches) outside the hull to ensure smooth water flow and reduced turbulence.

• Reliable Depth Tracking: Accurately reads depths up to 600 feet, giving you confidence in both coastal and inland waters.

• Self-Sealing Valve: Features an internal water valve that minimizes flow into the boat if the sensor insert is removed for cleaning.

• Direct Integration: Equipped with a Raymarine 7-pin connector, compatible with various Raymarine sonar modules and displays.

Technical Specifications

• Material: High-Impact Plastic (P19 design)

• Function: Depth Only

• Frequency: 200 kHz

• Power Output: 600W

• Beam Width: 12°

• Cable Length: 33 ft (10m)

• Hole Diameter: 2 inches (51mm)
