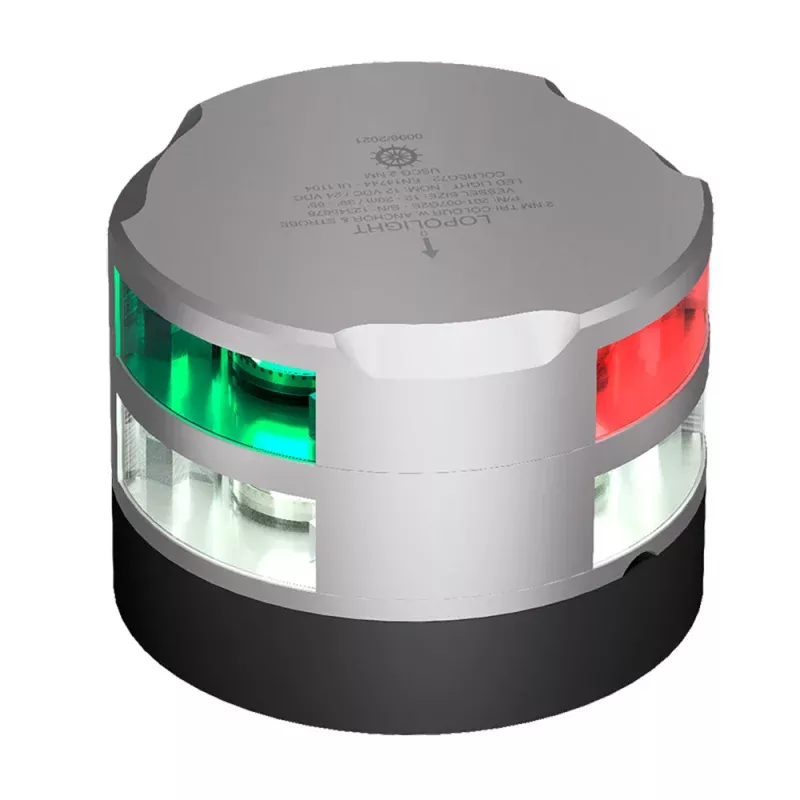

Lopolight Tri-Color Nav Light w/Anchor Light – 0.75M Cable Silver Housing

Description

Tri-Color Nav Light with Anchor Light – 0.75M Cable Silver Housing

This navigation light has red, green, and white colors while having up to 2NM Visibility.

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438024403
• Light Colors: Red, green, white
• Intensity:>5.4cd
• IP rating: IP68
• Connection: 0.7m cable
• Visibility: 2NM
• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Current Consumption (mA @ 12VDC): 213
• Current Consumption (mA @ 24VDC): 123
• Dimensions Metric: 92,5mm x 68mm
• Dimensions Imperial: 3.6 x 2.6
• Operating Temperature: -25C to 55C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2,9
• Vessel Size: Over 12-20M
• Min. Feed Wire Gauge: 0.5mm2 AWG22
• Weight (kg): 0.81 Kg
• Weight (oz): 28.57 Oz

Specifications:

• Housing: Silver
• Visible Range (Miles): 2NM
• Voltage – Input Range (Volts): 10-32

Owner’s Manual (pdf)
