Bluewater 22mm Off/On/On Push Button Switch, 1-Ft Lead

Sale!
Bluewater 22mm Off/On/On Push Button Switch, 1-Ft Lead

Bluewater 22mm Off/On/On Push Button Switch, 1-Ft Lead

Original price was: $56.00.Current price is: $42.80.

Category:

Description

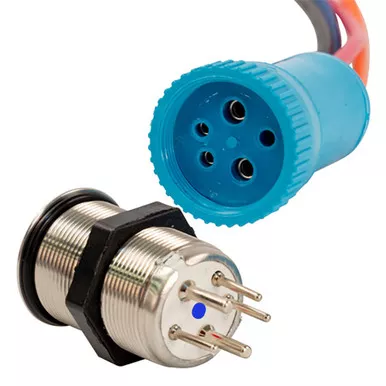

The Bluewater 22mm Off/On/On Push Button Switch provides three-position marine control in a compact stainless-steel format. Its Off-On-On contact supports accessories that require two selectable operating states from one switch while maintaining a clean modern dash appearance.

The LED ring is blue when off, green at the first ON position, and red at the second ON position for clear visual status. The stainless-steel-plated metal body and included gasket help provide an IP69K waterproof rating.

The switch is rated for 20A on 12-24VDC systems and has a 50,000-cycle mechanical life plus a 10,000-cycle electrical life. A 1-foot lead is included. Installation requires a 22mm mounting hole in material up to 6mm thick, followed by connection of the color-coded button and LED contacts. Explore our full range of marine electrical switches.
