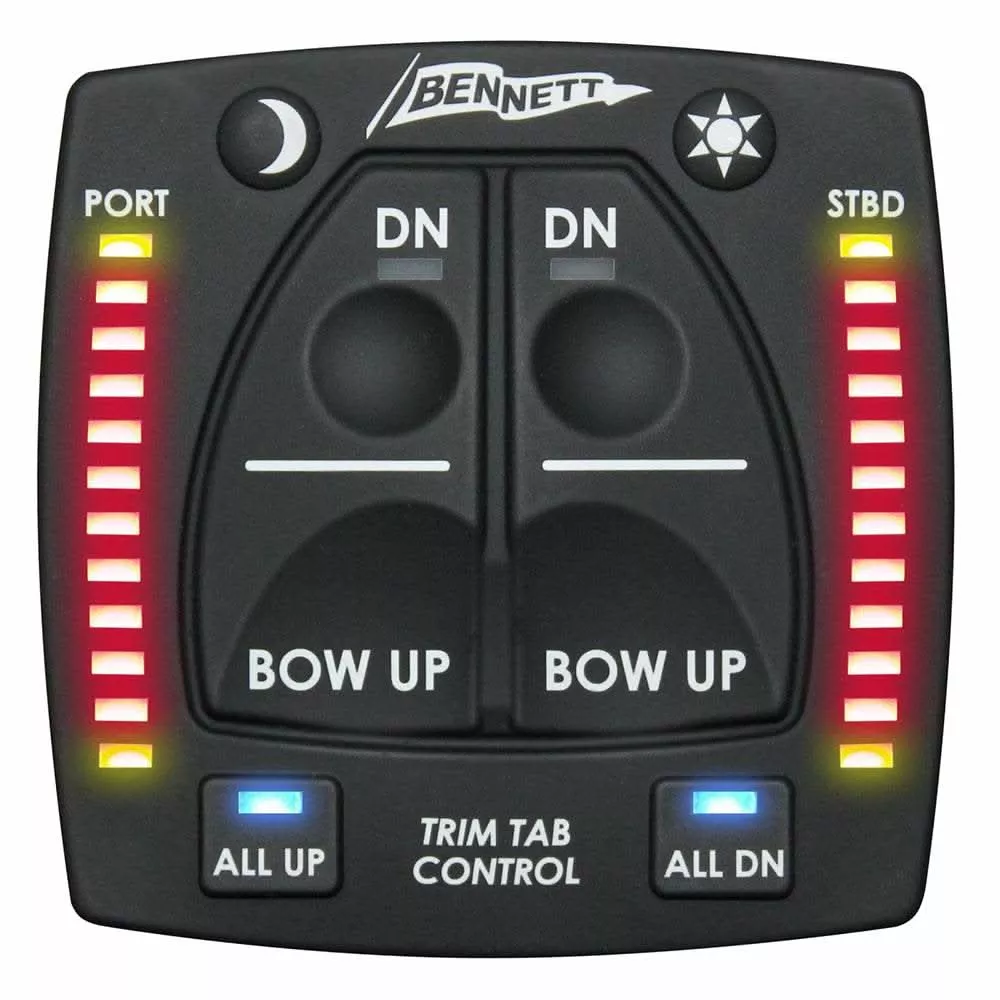

Bennett One Box Indication Unit for Bolt Electric System – OBI9000-E

Description

Bennett One Box Indication Unit for BOLT Electric System – OBI9000-E

The Bennett Marine One Box Indication Unit for Bolt Electric System – OBI9000-E is a precision display module designed to provide clear, real-time indication of trim tab and steering system status on vessels equipped with Bennett’s Bolt Electric actuators. Engineered for easy integration and reliable performance, this compact unit gives boaters essential system feedback right at the helm for confident control and enhanced safety.

Purpose-Built for Bolt Electric Systems

The OBI9000-E serves as the visual interface for Bennett’s Bolt Electric trim tab system, delivering accurate position indication for each actuator. As part of the One Box family, it unifies key performance data into a streamlined control package, reducing installation complexity while improving usability. Whether trimming for optimal ride performance or monitoring actuator response, the indication unit makes it easy to stay informed at a glance.

Intuitive Visual Feedback

Featuring a bright, easy-to-read display, this unit shows actuator positions and system status in real time. Its intuitive layout allows operators to quickly assess trim and steering conditions without distraction, making it ideal for busy helm environments. The OBI9000-E’s compact footprint simplifies dashboard integration and keeps critical information within clear view.

Durable Marine-Grade Construction

Built to withstand the demanding marine environment, the indication unit is designed with corrosion-resistant materials and sealed to resist moisture and vibration. This durability ensures dependable operation in saltwater conditions, offshore cruising, and everyday boating use. The Bennett One Box Indication Unit also offers straightforward integration with existing Bolt Electric system components, reducing wiring complexity and installation time.

Ideal Applications:

• Monitoring trim tab position on Bennett Bolt Electric systems

• Providing real-time actuator indication at primary or secondary helm stations

• Supporting performance tuning and ride optimization

• Enhancing safety and control feedback for powerboats and cruisers

Key Features

• Integrated Control Unit: No external “black box” required; the circuitry is built into the keypad for a faster, cleaner installation.

• Real-Time LED Indicators: Bright, variable-intensity LEDs show your exact tab position, perfect for both high-noon sun and night navigation.

• Auto Tab Retraction (ATR): Automatically retracts your trim tabs when the ignition is turned off, protecting your actuators during trailering or storage.

• Convenient “All Up” & “All Down” Buttons: Single-touch control for quickly resetting your tabs or fully deploying them for a fast hole-shot.

• Standard Hole Size: Fits a common 2.5″ (63.5mm) hole saw cut-out, making it a perfect retrofit for older rocker switches or competitive brands.

• Rugged Marine Build: Water-resistant and UV-protected to withstand the harshest saltwater environments.

Technical Specifications

In The Box

• 1x Integrated Helm Control Keypad (OBI9000-E)

• 1x Large Plastic Lock Nut (for secure mounting)

• 2x 20′ Extension Sensor Cables (with Deutsch connectors)

• 2x Actuator Upper Hinges (with 6′ sensors included)

• Installation Hardware & Drilling Template
