Raymarine Low Profile Bronze Depth Only – E66014

Description

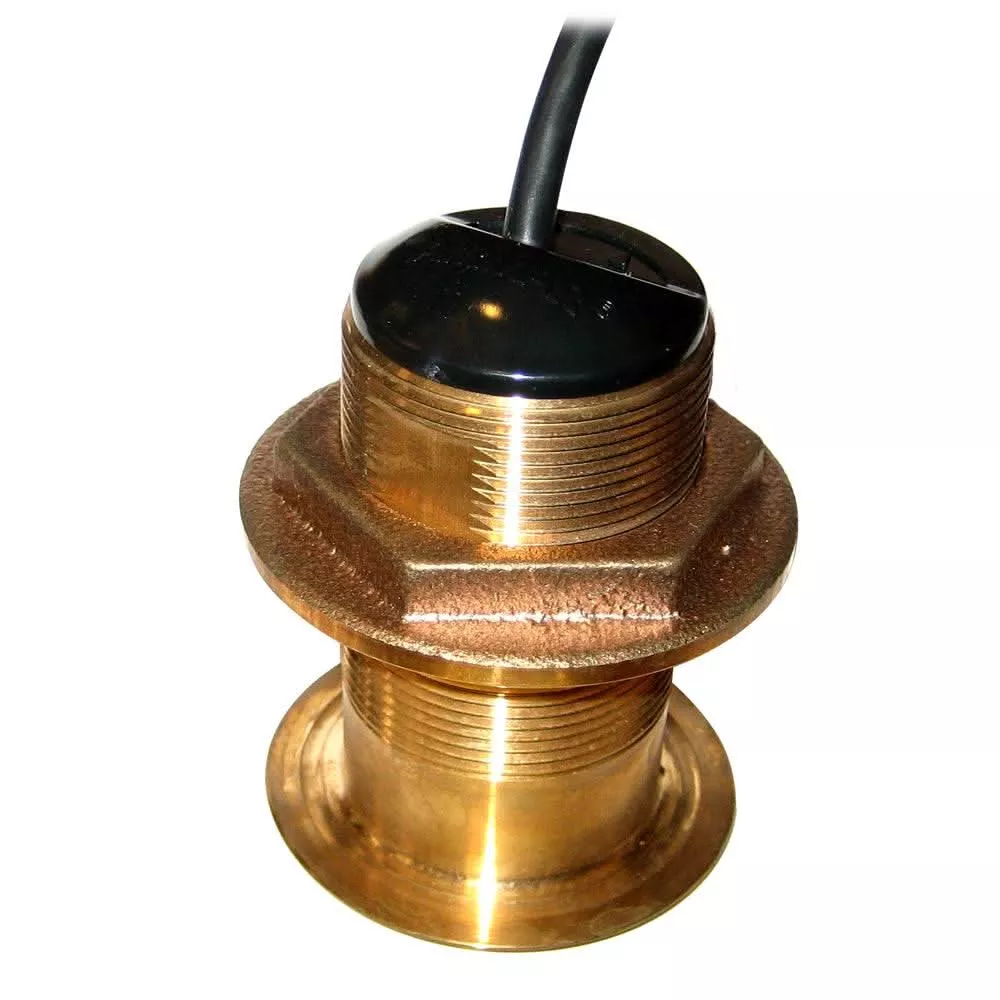

Raymarine Low Profile Bronze Depth Only – E66014

The Raymarine E66014 Low Profile Bronze Depth Transducer is a reliable, high-performance thru-hull sensor designed for sailors and powerboaters who need accurate depth data without the drag of a traditional fairing block. Its low-profile design sits nearly flush with the hull, making it an excellent choice for trailerable boats or vessels where a streamlined finish is a priority.

Built for Accuracy and Durability

This transducer uses a high-quality bronze housing, which is essential for use in fiberglass or wood hulls. The bronze construction provides superior durability and corrosion resistance compared to plastic alternatives. It operates on a 200 kHz frequency, offering excellent resolution for shallow water navigation and clear bottom tracking.

• Low-Drag Design: Protrudes only 5mm (0.2 inches) outside the hull to minimize turbulence and drag.

• Deep Water Performance: Capable of tracking depths up to 600 feet, providing peace of mind during coastal cruising.

• Easy Installation: Requires a standard 2-inch (51mm) hole and includes a self-sealing valve to minimize water intake during maintenance.

• Universal Connection: Features a Raymarine 7-pin connector (standard for DSM30/300, CP300, and CP370 modules).

Technical Specifications:

• Material: Marine-grade Bronze

• Function: Depth Only

• Frequency: 200 kHz

• Beam Width: 12°

• Cable Length: 33 ft (10m)

• Hull Deadrise: 0° to 7° (For steeper angles, use a tilted element model)
