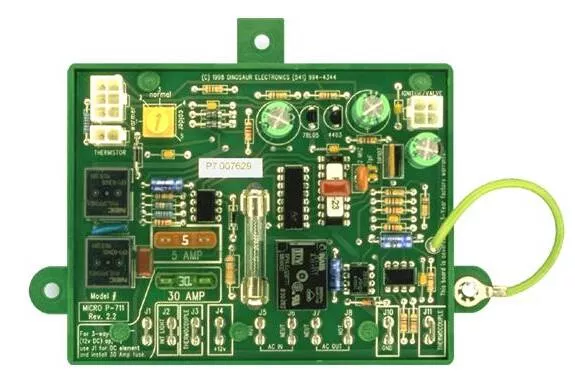

Dinosaur Electronics Dometic Refrigerator Replacement Board • MICRO P-711

Description

The Micro P-711 will work to replace any Dometic® Black Box Board part number that begins with “293”.

• Built in surge protection. Protects from installation errors and the RV Power supply.

• Fuse protected on the 120 VAC circuit, 12 VDC supply and the DC element.

• Improved thermocouple circuit to eliminate the recurring check light problem.

• Food saver feature keeps the refrigerator operating if the eyebrow board or communication link fails.

• Built in control allows temperature adjustment in the “Dumb Eyebrow” fixed temperature Americana and Freedom series refrigerators.

• The temperature control also allows compensation for aging and production variations in those units that have the -1-2-3-4-5- “Smart Eyebrow” temperature control on the operator panel.

• Built in microcontoller for highly reliable operation

• Universal 2-way or 3-way (AC / DC / Gas) operation

• Install optional fuse (provided) for 3-way operation

•  Includes an easy to remove protective cover

• Three year warranty

The Micro P-711 CANNOT replace any Black Box Board part number that starts with “385”. You must identify
