Blue Sea 8077 AC Main Only Toggle Breaker Panel

Sale!
Blue Sea 8077 AC Main Only Toggle Breaker Panel

Blue Sea 8077 AC Main Only Toggle Breaker Panel

Original price was: $86.36.Current price is: $58.43.

Category:

Description

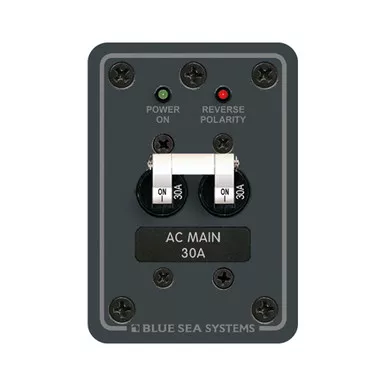

The Blue Sea Systems 8077 is a main only toggle AC panel fitted with a 7238 A-Series white toggle double pole 30A breaker, which suits the 30 amp shore service most boats under about 40 feet run. It is a tall narrow unit at 3.75 inches high by 2.63 wide.

Switching and circuit protection are combined into the one device, so the breaker doubles as the main switch. The trip free design means it cannot be held on during a fault current condition, so nobody can override the protection by holding the toggle.

Nominal voltage is 120V AC, maximum 277V AC or 65V DC. There is a safety ground screw on the back of the panel, and one green 120V AC LED and one red reverse polarity LED on the face. See our other marine electrical panels.
