Blue Sea 8023 DC 8 Position Circuit Breaker Panel

Sale!
Blue Sea 8023 DC 8 Position Circuit Breaker Panel

Blue Sea 8023 DC 8 Position Circuit Breaker Panel

Original price was: $201.56.Current price is: $117.83.

Category:

Description

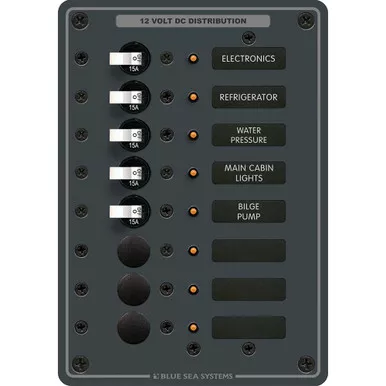

The Blue Sea Systems 8023 is an 8 position DC panel with white toggle switches, running 12 or 24 volts to a maximum of 100A. Five 7210 A-Series single pole 15A breakers are installed, so three positions stay open for whatever gets wired in over the next few seasons.

The panel measures 7.5 inches tall by 5.25 wide. Positive, negative and grounding buses are installed and it arrives fully pre-wired. Circuit label positions are backlit as standard, no kit required, with ON indicating LEDs in all positions.

Versions fitted with analog meters can be taken up to 24 volts later by the owner using the 8240 or 8243 meters, and metered panels include a toggle switch that reads across as many as three battery banks. The 8030 basic DC panel label set with 30 labels is included. See more marine electrical panels.
