Blue Sea 1842 M2 OLED Digital Bilge Meter [1842]

Description

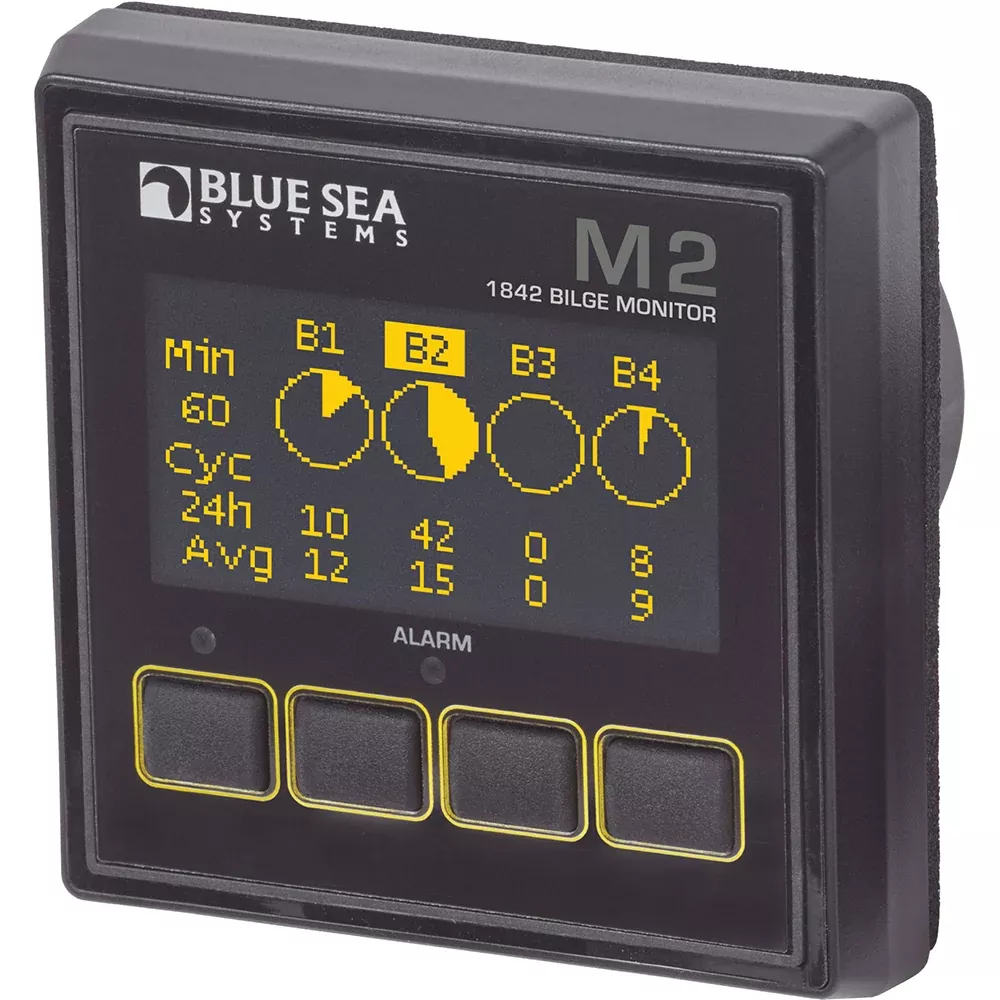

1842 M2 OLED Digital Bilge Meter

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Features:

• Auto-dimming, bright Organic LED display is easy to read
• 80dB alarm on all models
• Isolated 500mA MOSFET relay
• Bilge float switch not included

Specifications:

• Meter: Bilge
• Function: Monitors up to 4 bilges
• Alarm/Relay Activation: Run time/hr Cycles/24 hr Average Cycles
• Display Size: 55mm x 28mm
• Input Voltage: 7-70V DC
• Range: 0.3W-1.0W

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner’s Manual (pdf)
