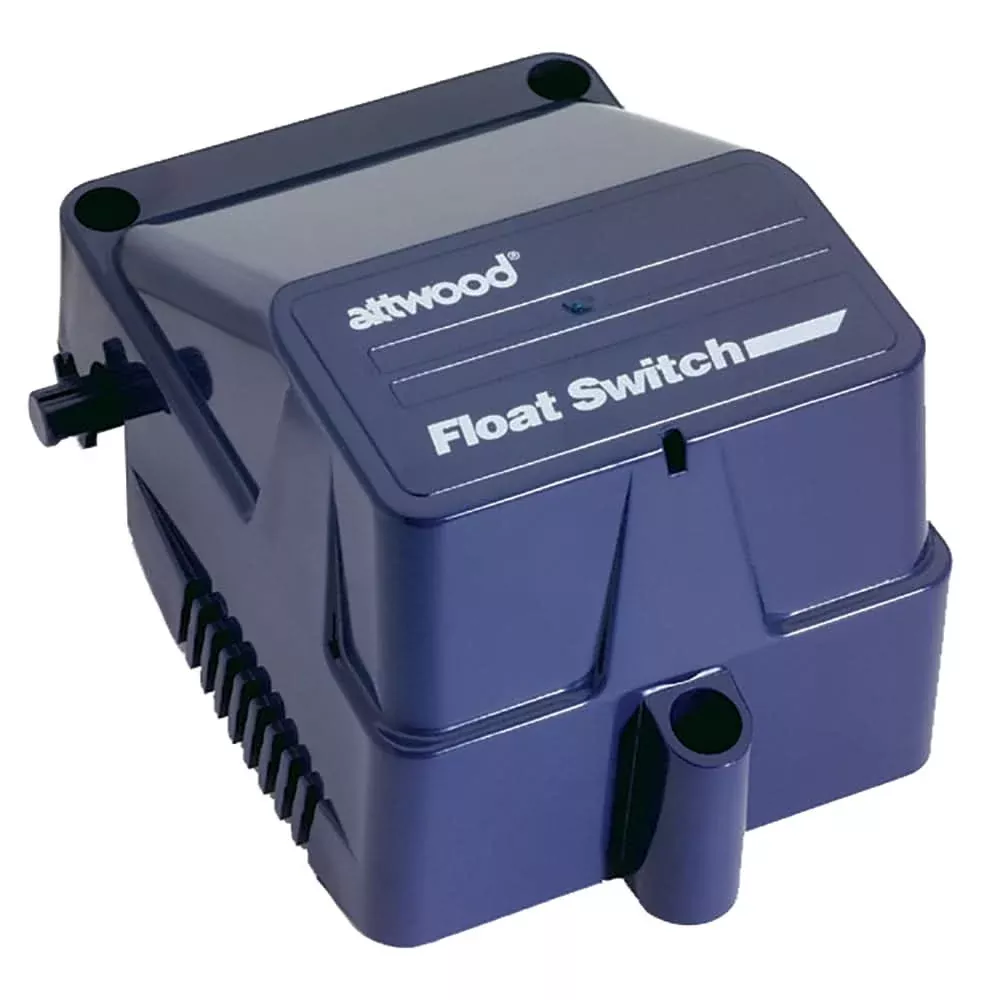

Attwood Automatic Float Switch w/Cover- 12V & 24V [4201-7]

Description

Float Switch w/Cover
Part : 4201-7

Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24″ angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2″ water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and “Persistent Toxic Substance” in over 26 states.

Float switch installs independently or directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

Features:

• 36″ Wire
• 12V and 24V
• CE Rated
• Includes Cover

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Volts: 12/24v
• Type: Switches
• Box Dimensions: 2″H x 6″W x 9″L WT: 0.5 lbs
• UPC: 022697420176

Quick Guide (pdf)
