Anker SOLIX Home Backup Kit (50A Transfer Switch+ Cable)
Original price was: $359.99.$277.86Current price is: $277.86.
Description

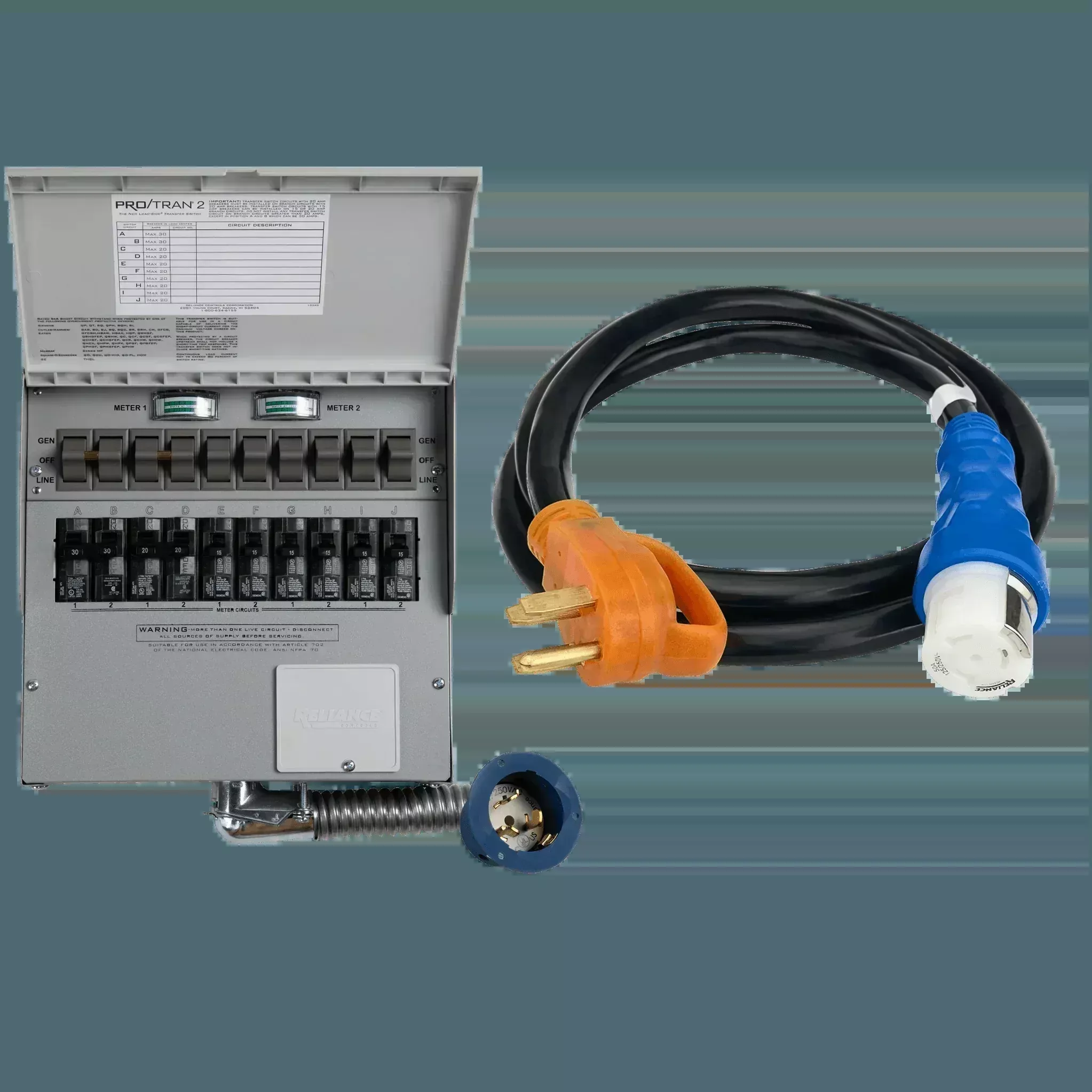

Anker SOLIX Home Backup Kit (50A Transfer Switch+ Cable)
- Pro/Tran 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside manual transfer switches, designed to work flawlessly with Anker SOLIX F3800.
- (10) Total Circuits (1″ Interchangeable Style)
- (6) 15A 1-pole
- (1) 20A 2-pole
- (1) 30A 2-pole
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manage the load on the Anker SOLIX F3800.
- Hinged, Non-Metallic Cover
- Protects toggle switches/breakers and provides a finished appearance.
- Powder-Coated Steel Cabinet for Indoor Installation
- Includes an 18″ flexible conduit with all factory wires clearly marked/colored.
- (6) Combination 1/2″ & 3/4″ Knockouts
- Designed for easier installation.
- Easily Re-configured in the Field for Multiple 2-Pole Circuits
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Standard 1008.
- Meets all requirements of Article 702 of the NEC ANSI/NFPA 70.
- Covers Up to 10 Essential Circuits for Backup (120V & 240V)
- Scalable up to 12kW and 53.8kWh for extended blackouts.
Product Specifications
Anker SOLIX Home Backup Kit (50A Transfer Switch+ Cable) Product Specifications
| Tech Specs | Details |
|---|---|
| 50-Amp 10-Circuit Home Backup Kit for Anker SOLIX F3800 | |
| Voltage: | 120/240V |
| Frequency: | 60 Hertz |
| Rated Watts: | 12,500 Watts |
| Rated Amps: | 50 Amps |
| Enclosure: | NEMA 1R |
| Conduit Length: | 18 inches |
| Number of Circuit Breakers: | 10 |
| Max Amp. Input: | 50 Amps |
| Maximum Wattage: | 12,500 Watts |
| UL Listed: | Yes |
| Weight: | 20 Pounds |
| Place of Production: | United States |
| Product Dimensions: | 11.25 × 11.75 × 4.5 inches |
| UPC: | 815181012212 |
| Battery Info | Option 1 | Option 2 | Option 3 |
|---|---|---|---|
| Capacity | 3,840Wh | 3,840Wh | 3,840Wh |
| Type | LFP | LFP | LFP |
| Cycles | 3,000 (At least 80% battery capacity) | 3,000 (At least 80% battery capacity) | 3,000 (At least 80% battery capacity) |
| Max Expansion Batteries | 6 | 6 or 12 | 6 or 12 |
| Max Capacity with Expansion Batteries | 26,880Wh | 26,880Wh | 53,760Wh |
